T5 INTEGRATED FIXTURES

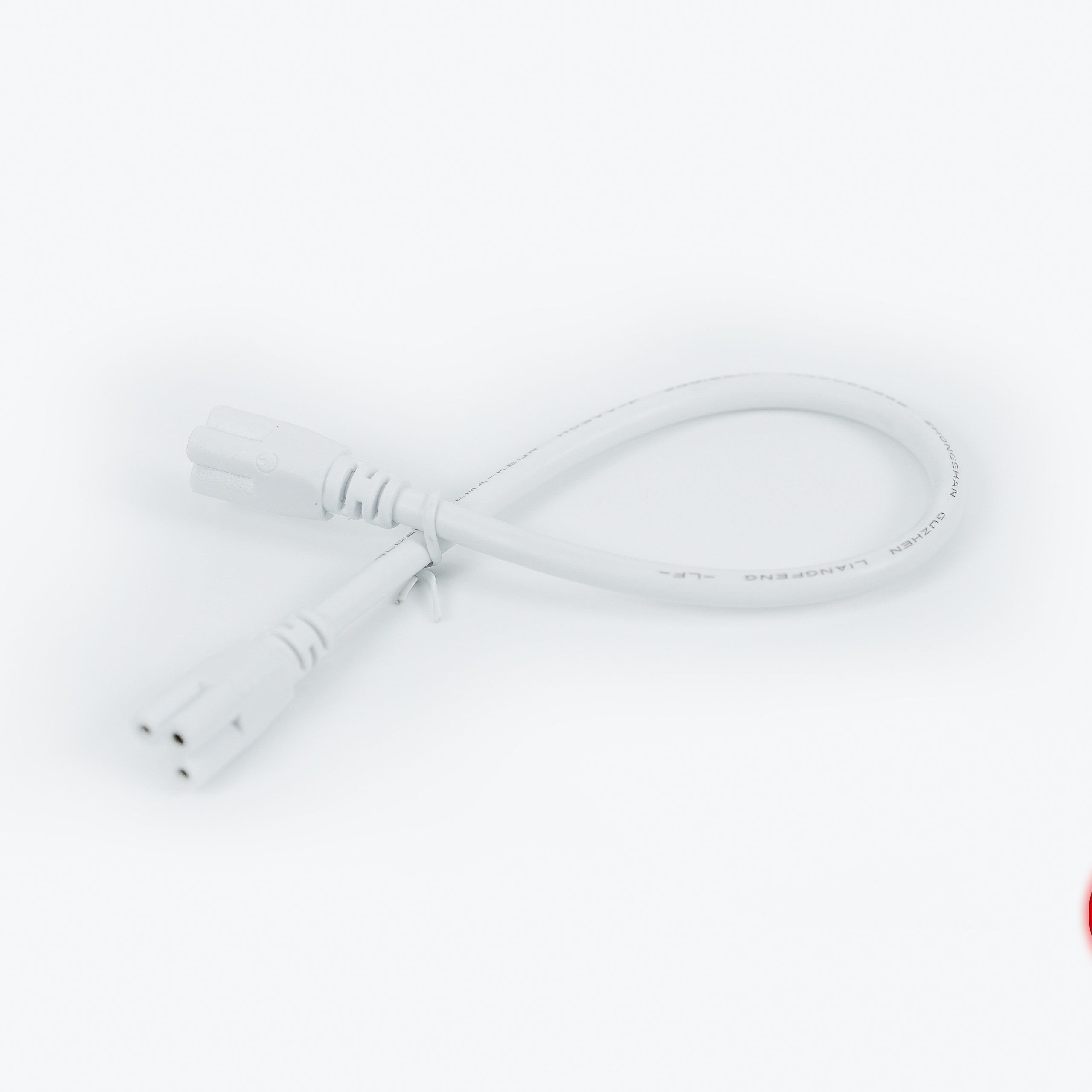

AP LED World Lighting’s T5 LED Integrated Lamps are designed to perform efficiently in conditions where fluorescent, halogen and low voltage luminaires have traditionally been used. Our T5 LED Lamps incorporate integral drivers, are self-supporting, and can be surface-mounted. Individual units can be plugged together for continuous lengths up to 20 feet. AP LED World Lighting T5 LED Integrated Lamps connect directly to line voltage and can be used in any interior space.
Features:
1. 210 Degree Beam Angle – V shape Design
2. Long Lifespan
3. High Luminous Efficiency
4. High Power Factor
5. Special Power Supply Method
6. Internal Power Supply Circuit
7. Uniform Direction
8. Eco-Friendly
9. High Color Rendering Index
10. High Stability
11. Guaranteed Quality
12. Low Maintenance
13. Energy Star LM-80 SMD
SPECIFICATIONS
| PART NUMBER | Family | Length | Lamp Power | Initial Lumens | Lamp Efficacy | CCT | CRI | Life |
| AP-IT548L30W-65-MV | INTEGRATED T5 FIXTURE | 48 | 30W | 3450 | 115 | 6500K | >80 | 50000 |
| AP-IVT572L48W-65-MV | INTEGRATED V- T5 FIXTURE | 72 | 48W | 5760 | 120 | 6500K | >80 | 50000 |
| AP-IVT596L60W-65-MV | INTEGRATED V- T5 FIXTURE | 96 | 60W | 7200 | 120 | 6500K | >80 | 50000 |
