LED Flood Light RGB 30W/50W/100W
LED Flood Light RGB 30W/50W/100W
Back to products
Signage LED Modules Single Color
Signage LED Modules Single Color

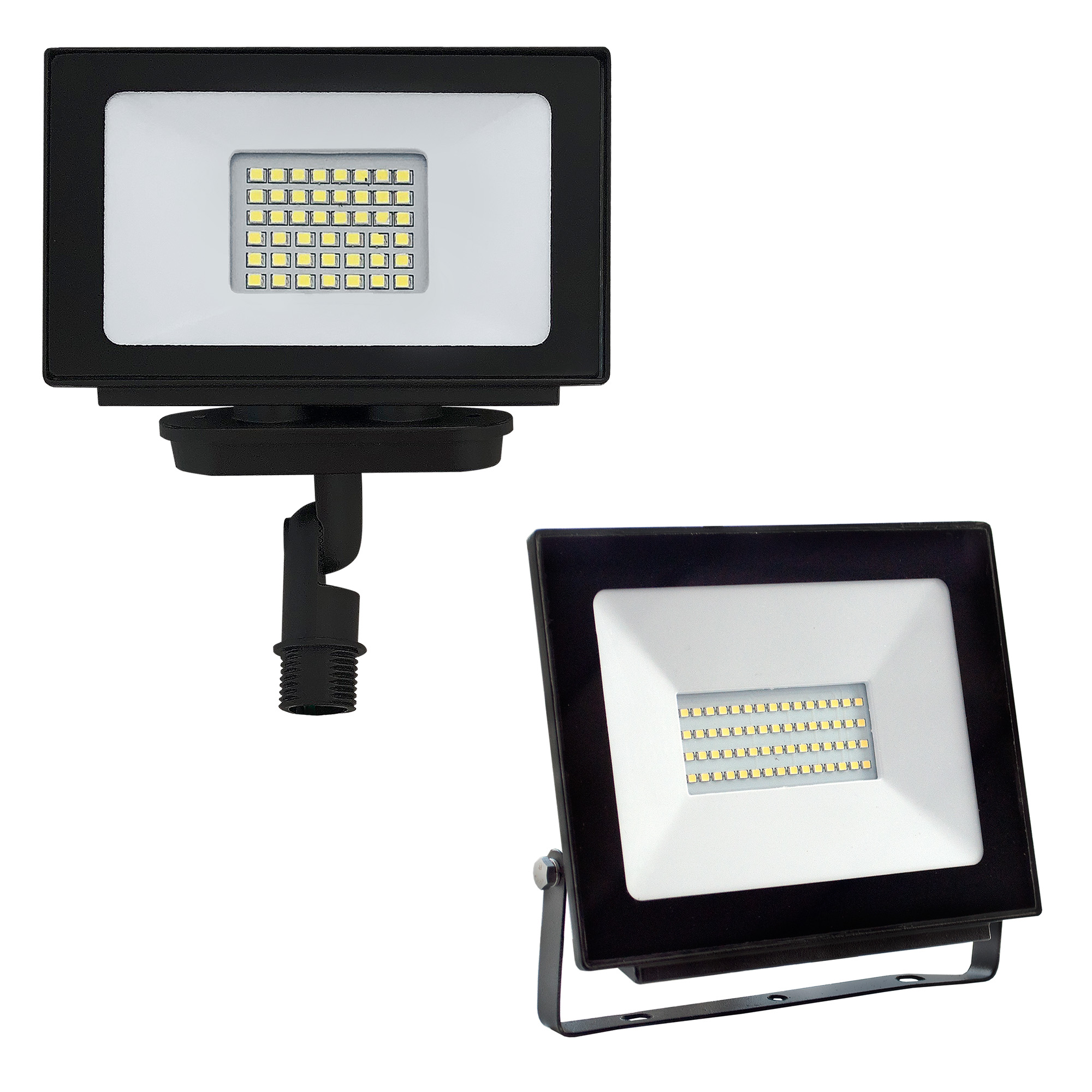

LED Flood Light with Arm/Yoke Mount

LED Mini Flood Light

LED SLIM FLOODLIGHT is highly efficient along with die-cast aluminum housing designed to maximize heat dissipation to ensure longevity. It is designed to operate on 120V circuits.

Tempered glass lens protects the LED chips and provides high illuminance.

INSTALLATION. With a sturdy aluminum arm bracket the fixture can be mounted directly to electrical boxes or to poles with ½” threaded inserts. A widened and thickened adjustable yoke bracket makes the light more stable. You can easily install it on ceilings, walls or other surface by adjusting the bracket to different angles.

APPLICATION. Perfect commercial or industrial solution for both indoor and outdoor applications such as: gardens, squares, stadiums, streets, yards, exterior accent lighting, and more. It is also Wet Locations rated.

ADVANTAGES. With calculated lifespan up to 97 000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty along with UL certification to guarantee top quality products and safety!

Categories: ,
Description

SPECIFICATIONS

LED Slim Floodlight with Yoke

Model
Power lm CCT CRI
Deg
L
W
H
 IP Operating t°
Dimming
ASD-FLSL-100N50Y-BK-2pack 120V 100W 10,200 5,000 >70 110° 12 7/8 9 13/16 1 9/16 IP65 -4+104°F -20+40°C R>36,000 C>97,000 No
ASD-FLSL-200N50Y-BK 120V 200W 21,404 5,000 >70 110° 16 7/16 13 1/8 1 5/8 IP65 -4+104°F -20+40°C R>36,000 C>97,000 No
ASD-FLSL-150N50Y-BK 120V 150W 15,868 5,000 >70 110° 8 1/4 6 13/16 1 5/16 IP65 -4+104°F -20+40°C R>36,000 C>97,000 No
ASD-FLSL-100N50Y-BK 120V 100W 10,200 5,000 >70 110° 12 7/8 9 13/16 1 9/16 IP65 -4+104°F -20+40°C R>36,000 C>97,000 No
ASD-FLSL-50N50Y-BK 120V 50W 5,100 5,000 >70 110° 8 1/4 1 1/4 6 7/8 IP65 -4+104°F -20+40°C R>36,000 C>97,000 No

LED Slim Floodlight with Arm

Model
Power lm CCT CRI
L
W
H
 IP Operating t°
Dimming
ASD-FLSL-50N50A-BZ 120V 50W 5,100 5,000 >70 110° 9 1/16 8 1/16 1 3/4 IP65 -4+104°F -20+40°C R>36,000 C>97,000 No
ASD-FLSL-50N30A-BZ 120V 50W 5,100 3,000 >70 110° 8 1/16 9 1/16 1 3/4 IP65 -4+104°F -20+40°C R>36,000 C>97,000 No
ASD-FLSL-30N50A-BZ 120V 30W 3,056 5,000 >70 110° 7 1/4 5 13/16 1 11/16 IP65 -4+104°F -20+40°C R>36,000 C>97,000 No
ASD-FLSL-30N30A-BZ 120V 30W 3,056 3,000 >70 110° 7 1/4 5 13/16 1 11/16 IP65 -4+104°F -20+40°C R>36,000 C>97,000 No
ASD-FLSL-20N50A-BZ 120V 20W 2,040 5,000 >70 110° 6 5/8 4 13/16 1 5/8 IP65 -4+104°F -20+40°C R>36,000 C>97,000 No
