LED LINEAR HIGH BAY

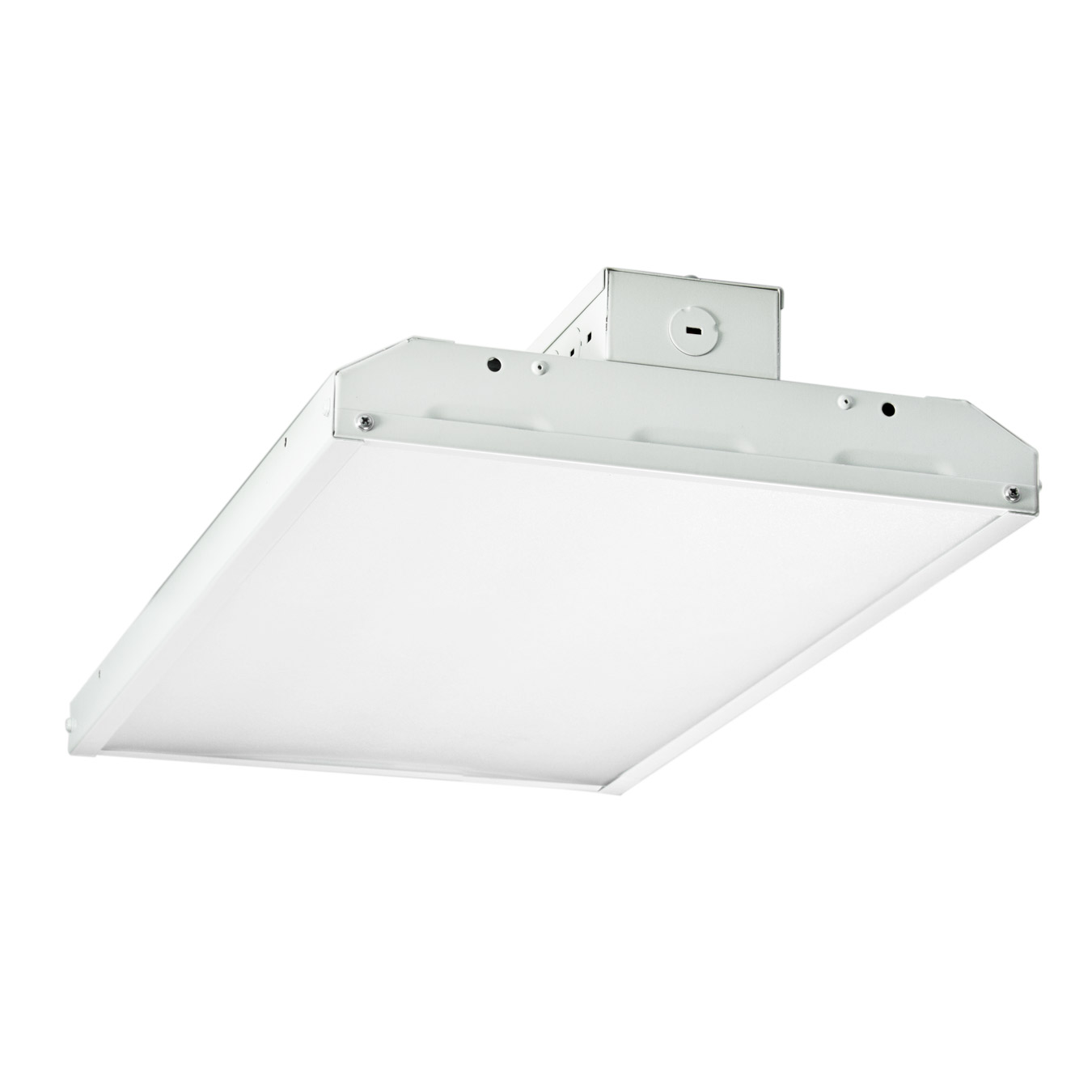

LED Linear High Bay Fixtures

AP LED Linear High Bay Fixtures are a complete replacement for any high bay fixture. Instead of replacing tubes, lamps or ballasts, this product allows for a complete retrofit to a fully integrated light fixture. Employing 0-10V dimming driver, this fixture will work with occupancy sensors and similar energy saving technologies. Our high bay fixtures are available in three sizes. V-Hooks and a Pendant Hanger are included with all linear high bay fixtures.

Benefits

  • Eliminates fluorescent lamp and ballast maintenance costs
  • Longer, more energy efficient life than fluorescent lamps
  • Suitable for damp locations
  • Mercury and Lead-free, UV and IR free
  • Instant on to full brightness

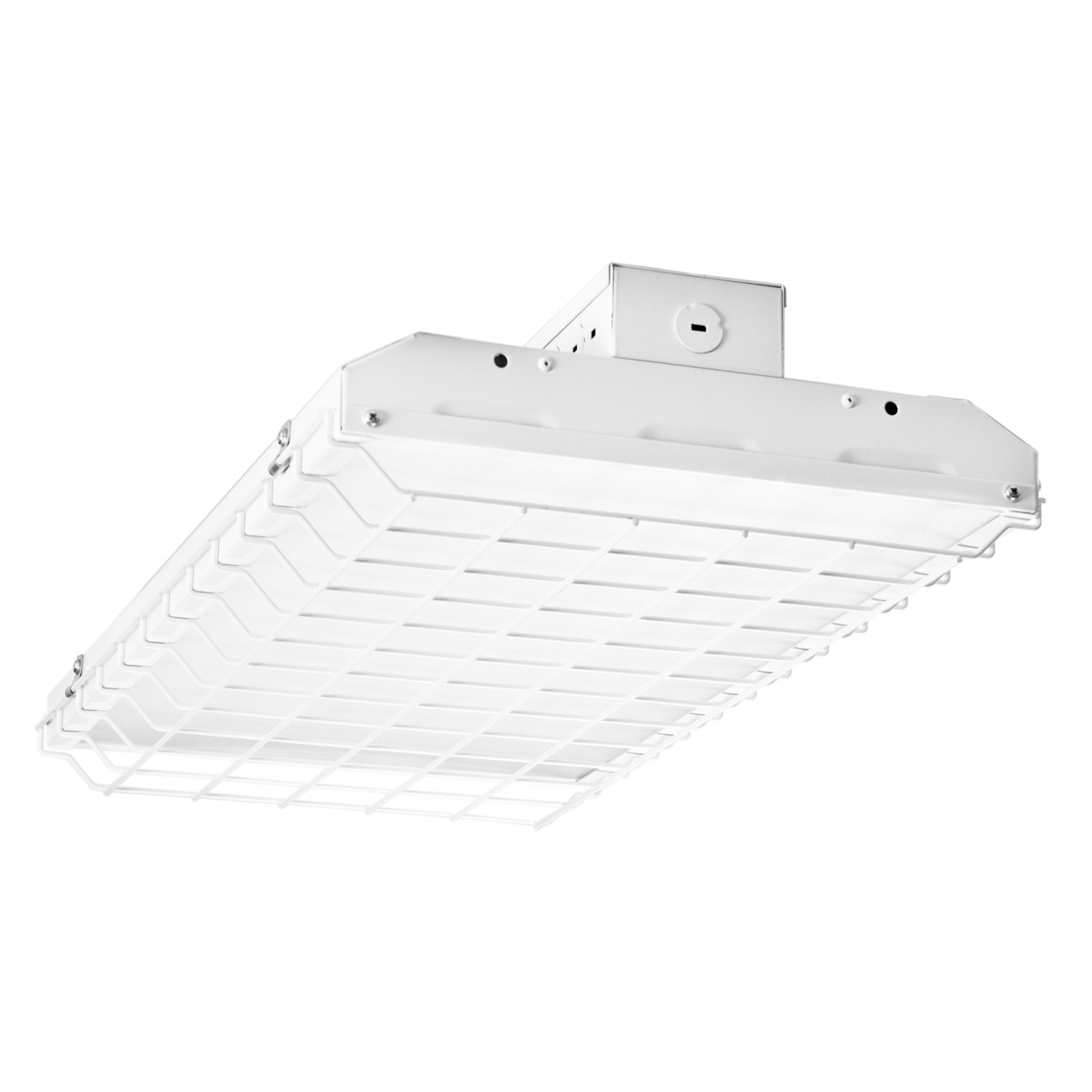

  • Optional Wire Guards Available
  • Optional Mounting Options Available
  • Optional Optical Sensors Available
Category:
Description

SPECIFICATION

PART NUMBER SIZE WATTAGE (W) VOLTAGE (V) CCT TYPICAL LUMENS CRI DIM WEIGHT (LBS) DLC QPL
AP-HB12-110A-50 13″x 24″ 110 120-277 5000K 14000 >80 0-10V 8.82 Yes
AP-HB14-162A-50 18″ x 24″ 162 120-277 5000K 21000 >80 0-10V 12.57 Yes
AP-HB14-223A-50 13″ x 46″ 223 120-277 5000K 29000 >80 0-10V 16.76 Yes
AP-HB24-420A-50 24″ x 46″ 425 120-277 5000K 58000 >80 0-10V — No



ACCESSORIES



PART NUMBER DESCRIPTION
G12-110 Guard for K2R6
G24-160 Guard for K2R7
G24-220 Guard for K2R8
LOD-500SEC Occupancy Sensor
LOD-509SEC Smart Occupancy Sensor
EMA-500 Occupancy Sensor Elbow Attachment
HBG-10 Cable Hanging System
HBGH-10 Hook Cable Hanging System (V-Hooks included with all linear high-bays)
