LED LINEAR HIGH BAY

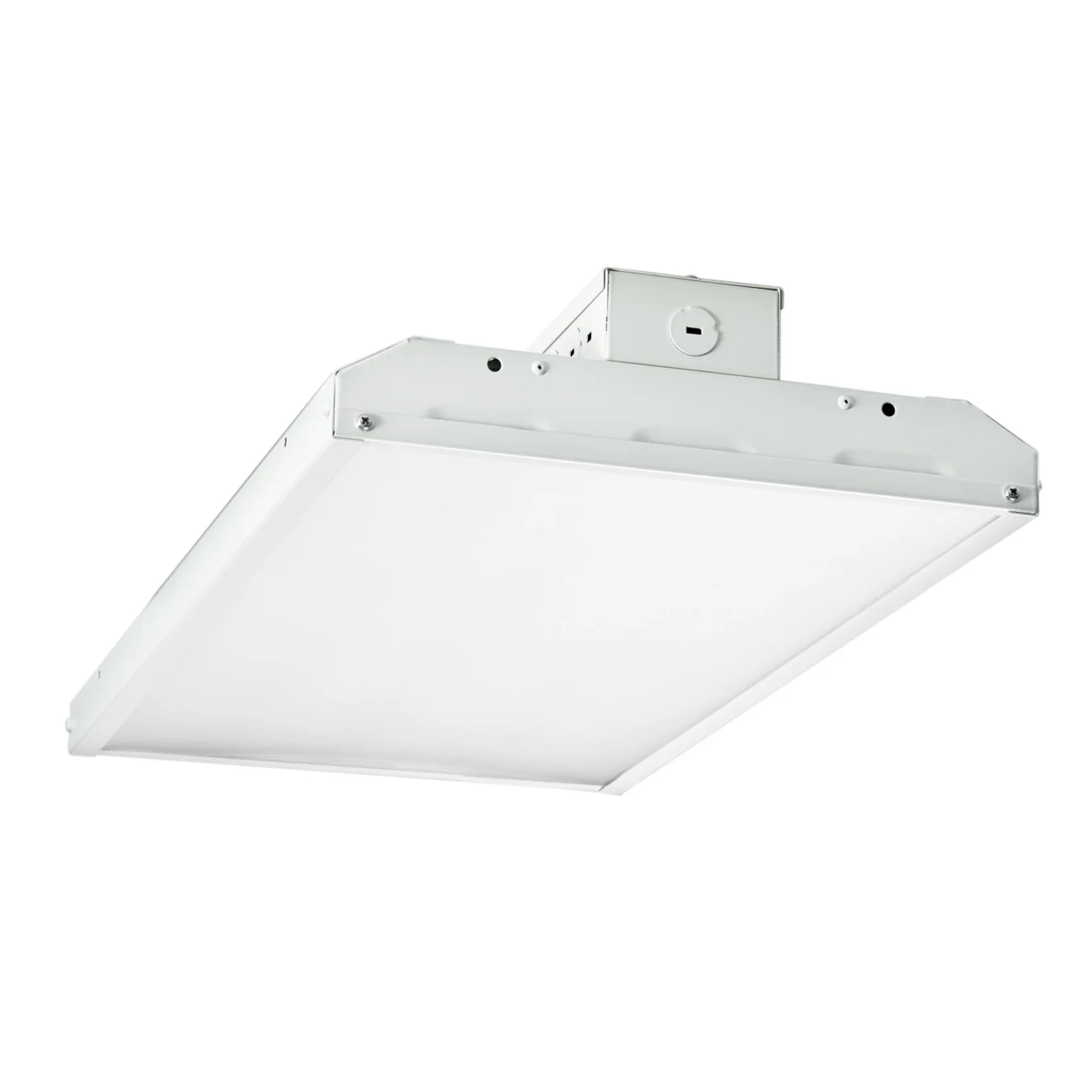

LED Linear High Bay Fixtures
AP LED Linear High Bay Fixtures are a complete replacement for any high bay fixture. Instead of replacing tubes, lamps or ballasts, this product allows for a complete retrofit to a fully integrated light fixture. Employing 0-10V dimming driver, this fixture will work with occupancy sensors and similar energy saving technologies. Our high bay fixtures are available in three sizes. V-Hooks and a Pendant Hanger are included with all linear high bay fixtures.
Benefits
- Eliminates fluorescent lamp and ballast maintenance costs
- Longer, more energy efficient life than fluorescent lamps
- Suitable for damp locations
- Mercury and Lead-free, UV and IR free
- Instant on to full brightness
- Optional Wire Guards Available
- Optional Mounting Options Available
- Optional Optical Sensors Available
ACCESSORIES
| PART NUMBER | DESCRIPTION |
| G12-110 | Guard for K2R6 |
| G24-160 | Guard for K2R7 |
| G24-220 | Guard for K2R8 |
| LOD-500SEC | Occupancy Sensor |
| LOD-509SEC | Smart Occupancy Sensor |
| EMA-500 | Occupancy Sensor Elbow Attachment |
| HBG-10 | Cable Hanging System |
| HBGH-10 | Hook Cable Hanging System (V-Hooks included with all linear high-bays) |
SPECIFICATION
| PART NUMBER | SIZE | WATTAGE (W) | VOLTAGE (V) | CCT | TYPICAL LUMENS | CRI | DIM | WEIGHT (LBS) | DLC QPL |
| AP-HB12-110A-50 | 13″x 24″ | 110 | 120-277 | 5000K | 14000 | >80 | 0-10V | 8.82 | Yes |
| AP-HB14-162A-50 | 18″ x 24″ | 162 | 120-277 | 5000K | 21000 | >80 | 0-10V | 12.57 | Yes |
| AP-HB14-223A-50 | 13″ x 46″ | 223 | 120-277 | 5000K | 29000 | >80 | 0-10V | 16.76 | Yes |
| AP-HB24-420A-50 | 24″ x 46″ | 425 | 120-277 | 5000K | 58000 | >80 | 0-10V | — | No |
