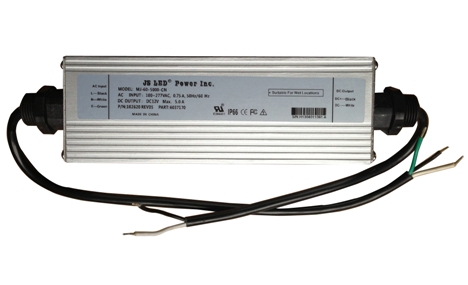

LED POWER SUPPLY
AP LED driving solutions are not only recognized for their high efficiency and simplicity; they are also renowned for their incredible versatility and are well suited to tackle a wide range of applications.
Features
- Protections: With OCP, OVP, SCP Protection and Auto Recovery
- Water Protection (IP68)
- Convection Cooled, Aluminum Housing
- 100% full load burn-in test
- Low cost, high reliability, high PFC
SPECIFICATION
| PART NUMBER | Family | Input Voltage | Input Current | Power | CERTIFICATION | Life | Output Voltage | Output Current |
| AP-MJ-60-5000-OJ | LED MODULES | 100-277V | 0.03-0.76A | 60W | UL8750 | 50000 | 11.5-12.5V | 5A |
| AP-MJ-12100 | LED MODULES | 100-277V | 1.4A | 100W | UL879 8750 | 50000 | 12V | 8.33A |
| AP-MJ-12150 | LED MODULES | 100-277V | 2.1A | 150W | UL60950 | 50000 | 11.4-12.6V | 12.5A |
